P130 front motor has the following advantages:
1. The P130 front motor is based on the P100 front motor, with a built-in 210Wh battery, built-in controller.

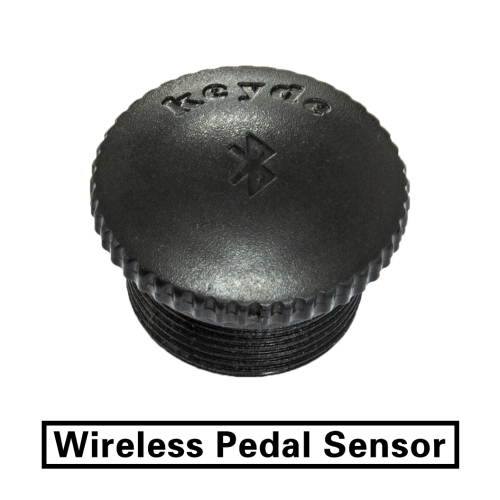

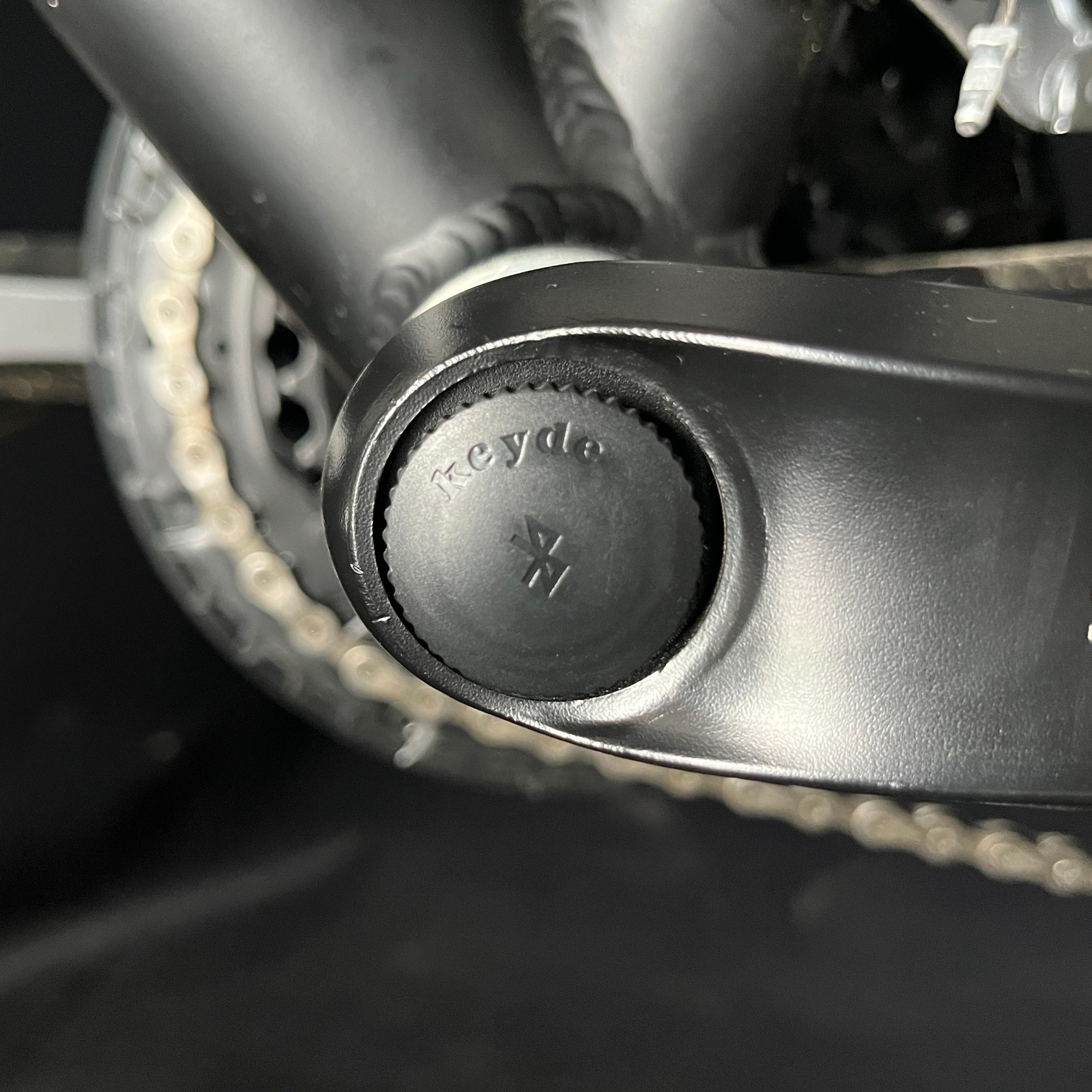

2. it need use with wireless pedal sensor.
3. Built-in bluetooth module, wireless connection, no need for any cables, easy installation.
4. The work efficiency is as high as 90%, effectively reducing heat loss and increasing cruising range.
5. The weight is only 2.6kgs
|
Item No. |
P130SWXDC30/P130SWXC30 |
|
Diameter |
143mm±1mm |
|
Width |
100±2mm |
|
Brake types |
Disc brake/ V brake |
|
Outlet position |
No cable |
|
Spoke no. |
20H，24H，28H，32H，36H |
|
Spoke types |
13g / 14g |
|
Controller |
Internal |
|
Sensor |
Wireless pedal sensor |
|
Battery |
7Ah |
|
Rated power |
250W |
|
Max. power |
350W |
|
Max. torque |
25N·m |
|
Rated voltage |
30V |
|
Rated input current |
8.3A |
|
Reduction ratio |
1 : 13.5 |
|
Grade-ability |
＞20% |
|
Efficiency |
＞90% |
|
Revolution |
160-260RPM |
|
Applicable wheel diameter |
14-29inch |
|
Color |
Black/Silver |
|
Noise |
＜50dB |
|
Operation temperature |
-20-45℃ |
|
Storage temperature |
-20-45℃ |
|
Waterproof & Dust-proof |
IP65 |
|
Weight |
2.6KGS |
